NMOS/PMOS の基本特性を観察するための 最小 SPICE テンプレート集
Minimal SPICE template collection to observe basic NMOS/PMOS characteristics.
🎯 目的 | Purpose
- 半導体デバイスの Vd–Id, Vg–Id 特性を理解する
Understand transistor Vd–Id and Vg–Id characteristics - W/L や電源電圧の違いによるデバイス挙動を比較する
Compare device behaviors under different W/L ratios and supply voltages - SPICE シミュレーションから CSV 出力 → 可視化(Excel/Python)
Export CSV from SPICE simulation and visualize with Excel/Python
📂 含まれるファイル | Contents
ファイル名 | 説明 |
---|---|
NMOS_VgId_1v8.sp |
NMOS Vg–Id テンプレート(W=10 µm / L=0.18 µm, VDD=1.8 V) NMOS Vg–Id template (W=10 µm / L=0.18 µm, VDD=1.8 V) |
NMOS_VdId_1v8.sp |
NMOS Vd–Id テンプレート(W=10 µm / L=0.18 µm, VDD=1.8 V) NMOS Vd–Id template (W=10 µm / L=0.18 µm, VDD=1.8 V) |
PMOS_VgId_1v8.sp |
PMOS Vg–Id テンプレート(W=10 µm / L=0.18 µm, VDD=1.8 V) PMOS Vg–Id template (W=10 µm / L=0.18 µm, VDD=1.8 V) |
PMOS_VdId_1v8.sp |
PMOS Vd–Id テンプレート(W=10 µm / L=0.18 µm, VDD=1.8 V) PMOS Vd–Id template (W=10 µm / L=0.18 µm, VDD=1.8 V) |
NMOS_VgId_3v3.sp |
NMOS Vg–Id テンプレート(W=10 µm / L=0.18 µm, VDD=3.3 V) NMOS Vg–Id template (W=10 µm / L=0.18 µm, VDD=3.3 V) |
NMOS_VdId_3v3.sp |
NMOS Vd–Id テンプレート(W=10 µm / L=0.18 µm, VDD=3.3 V) NMOS Vd–Id template (W=10 µm / L=0.18 µm, VDD=3.3 V) |
PMOS_VgId_3v3.sp |
PMOS Vg–Id テンプレート(W=10 µm / L=0.18 µm, VDD=3.3 V) PMOS Vg–Id template (W=10 µm / L=0.18 µm, VDD=3.3 V) |
PMOS_VdId_3v3.sp |
PMOS Vd–Id テンプレート(W=10 µm / L=0.18 µm, VDD=3.3 V) PMOS Vd–Id template (W=10 µm / L=0.18 µm, VDD=3.3 V) |
README.md |
本ファイル(使い方と概要) This file (overview and usage) |
⚙️ 使い方 | Usage
-
教育用の利用(PDK不要)
.model
を使ったシンプルなデバイスモデルを定義しているため、PDK を持っていなくても動作します。
Educational use with.model
, no PDK required. -
実プロセスでの利用
実際のプロセスを使う場合は.include
を使って PDK モデルを読み込みます。
For real processes, replace.model
with.include
to load your PDK models..include sky130_fd_pr__nfet_01v8.model
- 実行例
ngspice でシミュレーションを実行できます。
Run the simulation with ngspice:ngspice NMOS_VgId_1v8.sp
- 出力の可視化
CSV ファイルが生成されるので、Excel や Python で簡単にグラフ化できます。
Generated CSV can be visualized with Excel or Python.
📝 ChatGPTとの併用 | With ChatGPT
.sp
ファイルを ChatGPT に貼り付けると、以下のことが可能です:
If you paste the .sp
file into ChatGPT, you can:
- 行ごとの意味を解説
Get explanations line by line (e.g., what.model
or.control
means). - カスタマイズ提案
Ask how to modify parameters such as W/L, VDD, or sweep steps. - 追加実験例を生成
Generate variants (e.g., other voltages, multi-finger devices, PMOS versions).
🔧 カスタマイズ例 | Customization Examples
- しきい値電圧 (VTO) の変更
.model NMOS NMOS (LEVEL=1 VTO=0.5 KP=50u LAMBDA=0)
→ より低電圧でトランジスタがオンする動作を確認できます。
Check behavior of a lower-threshold transistor. - チャネル長 (L) の変更
M1 D G 0 0 NMOS W=10u L=0.35u
→ 長チャネル効果を観察できます。
Observe long-channel device behavior. - 電源電圧 (VDD) の変更
VDD D 0 5.0
→ 高電圧動作時の Id–Vg, Id–Vd を確認できます。
Check transistor characteristics at higher supply voltages.
📊 出力例 | Example Results
NMOS @ 1.8 V

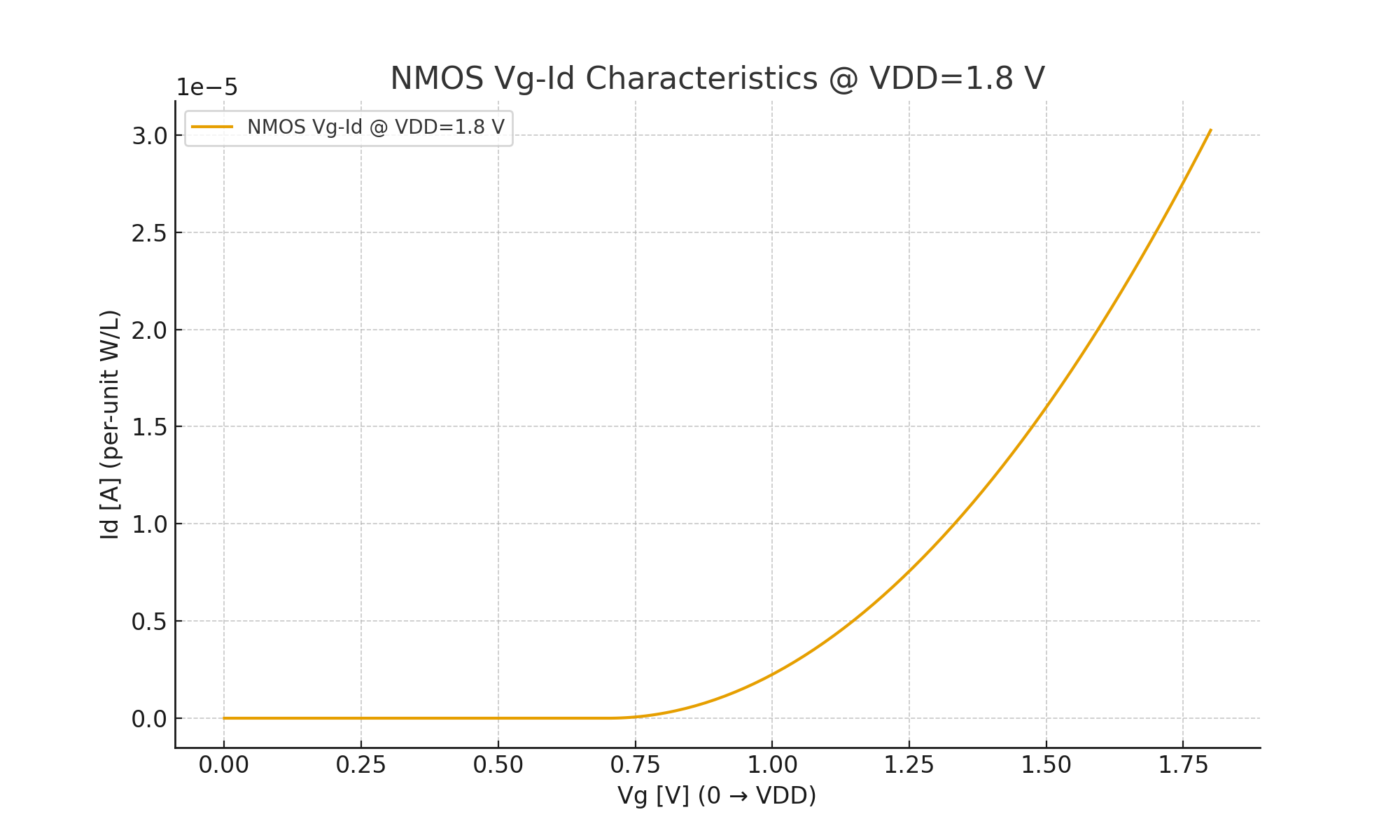

- Vg–Id 特性

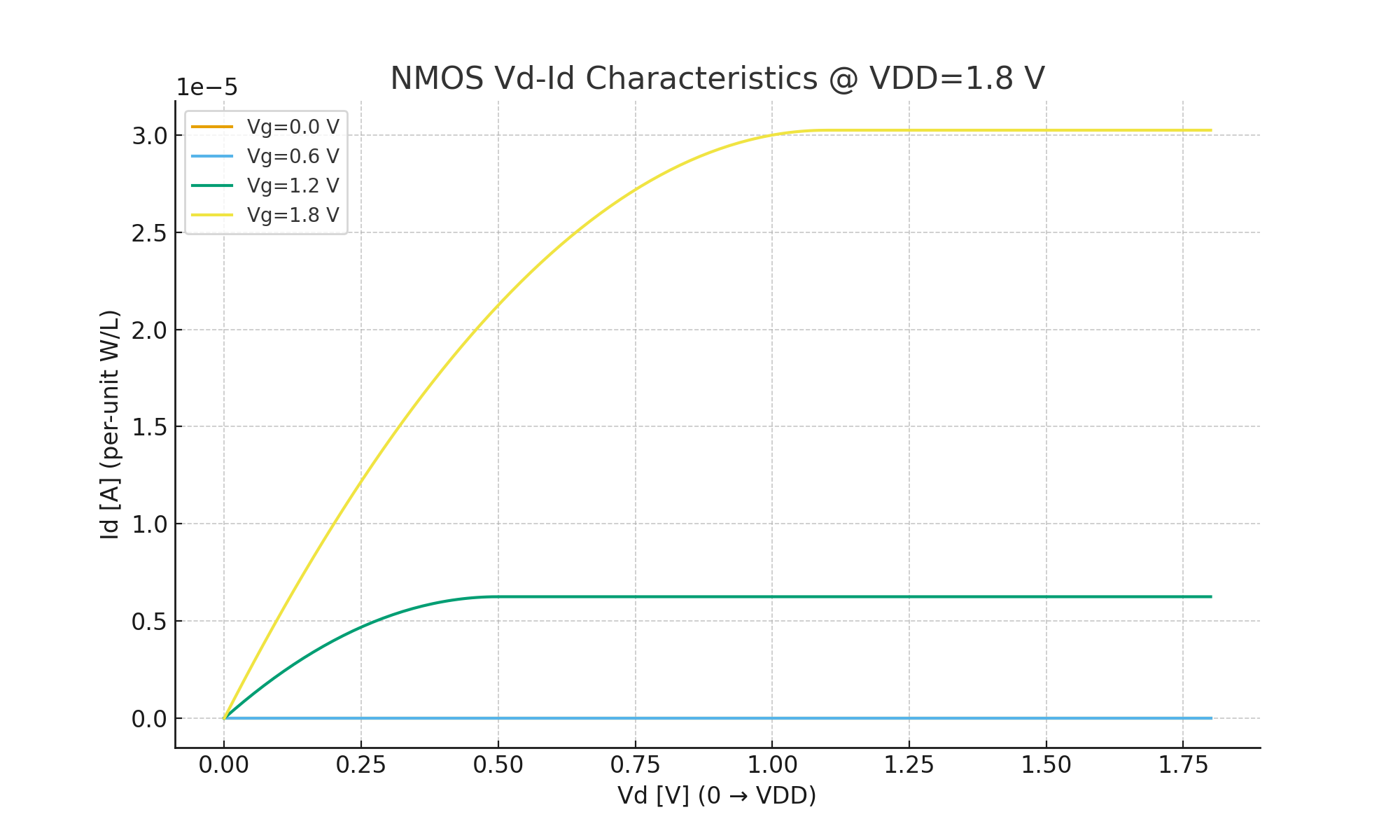

- Vd–Id 特性
NMOS @ 3.3 V

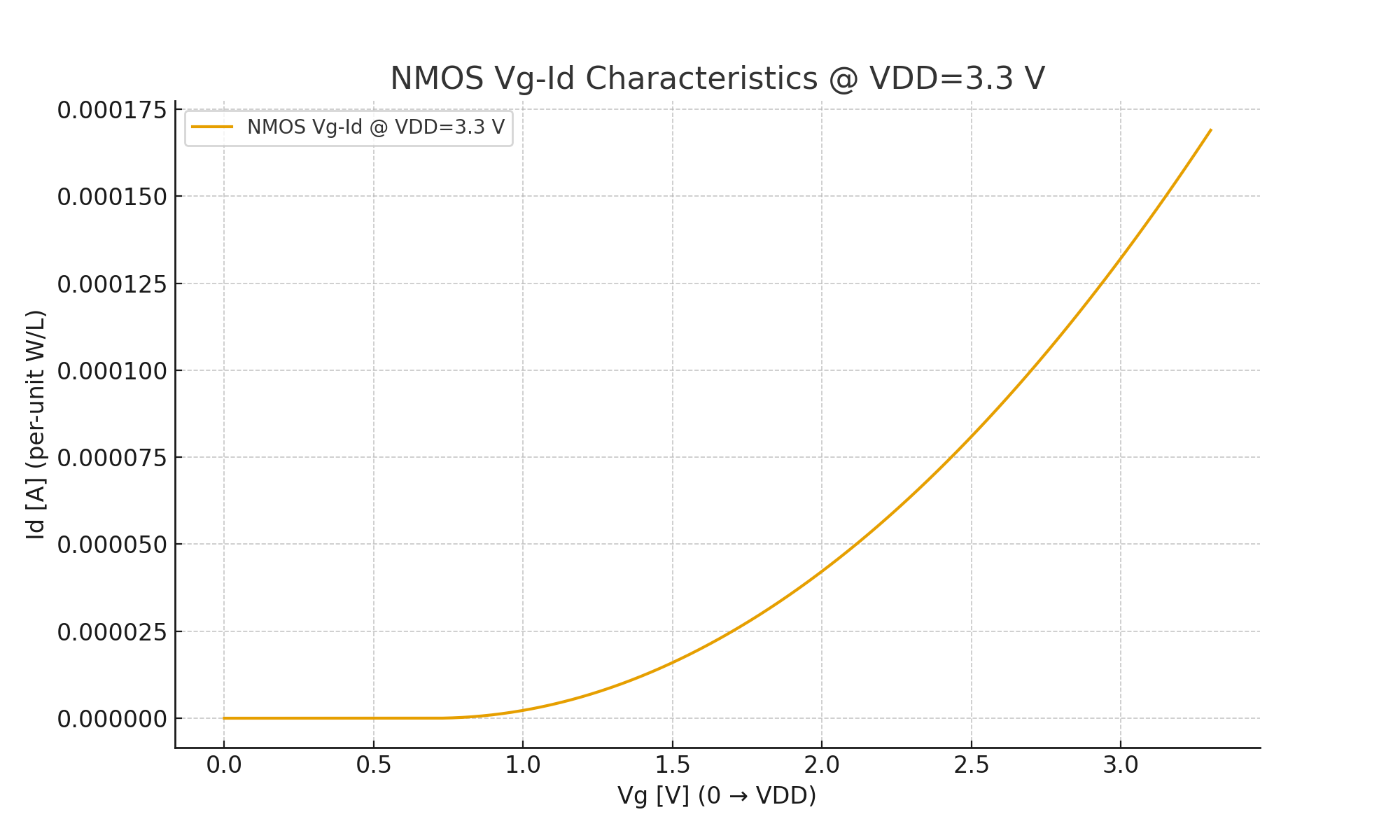

- Vg–Id 特性

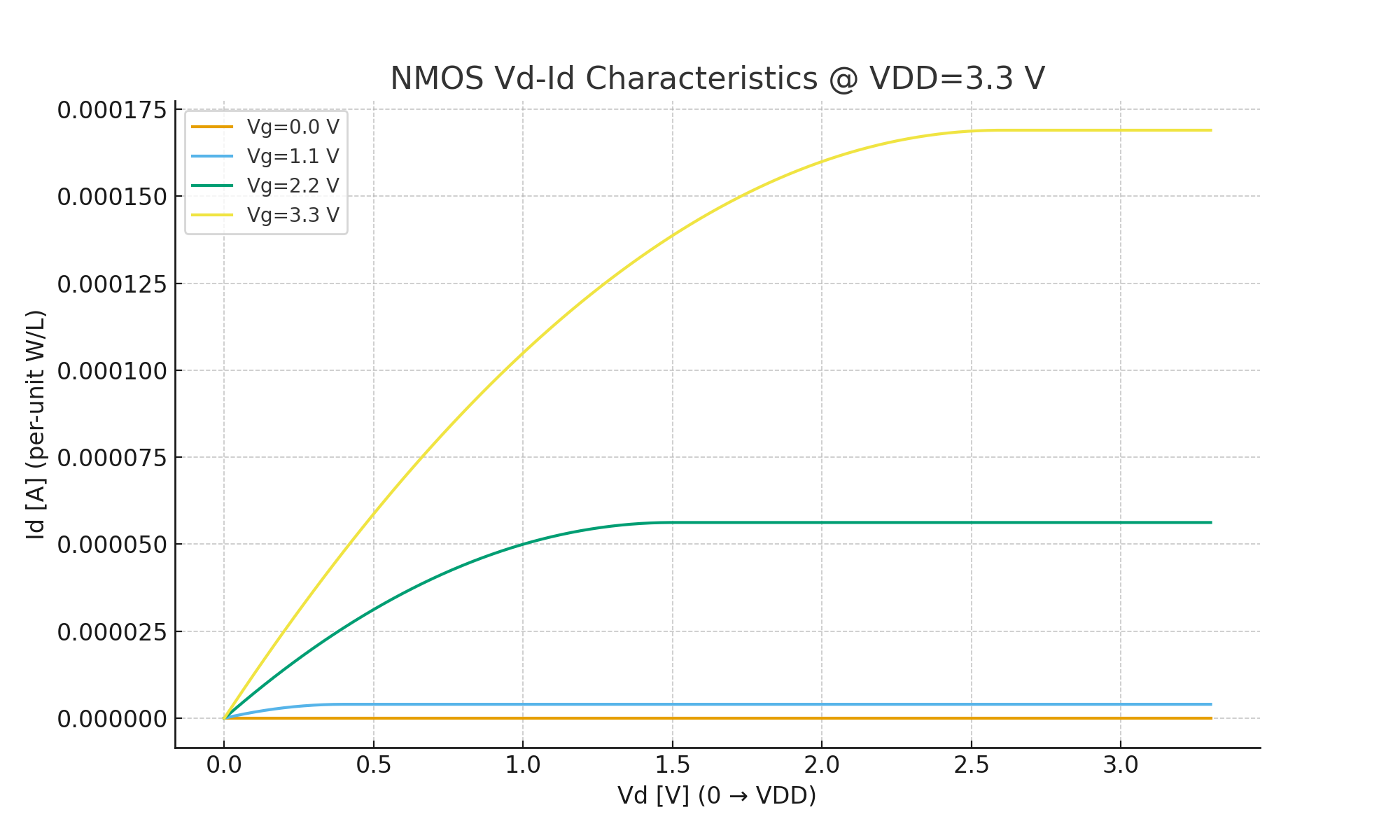

- Vd–Id 特性
PMOS @ 1.8 V

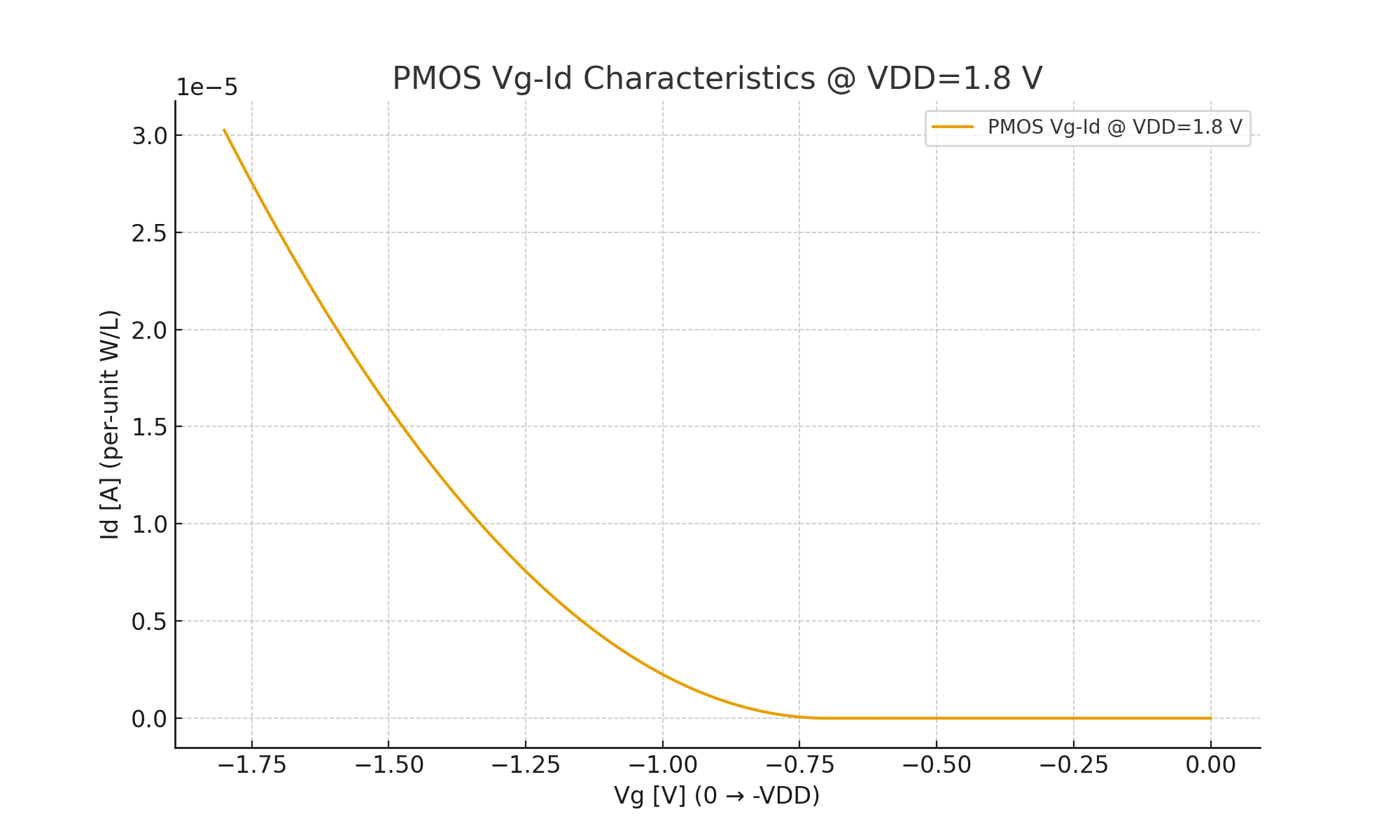

- Vg–Id 特性

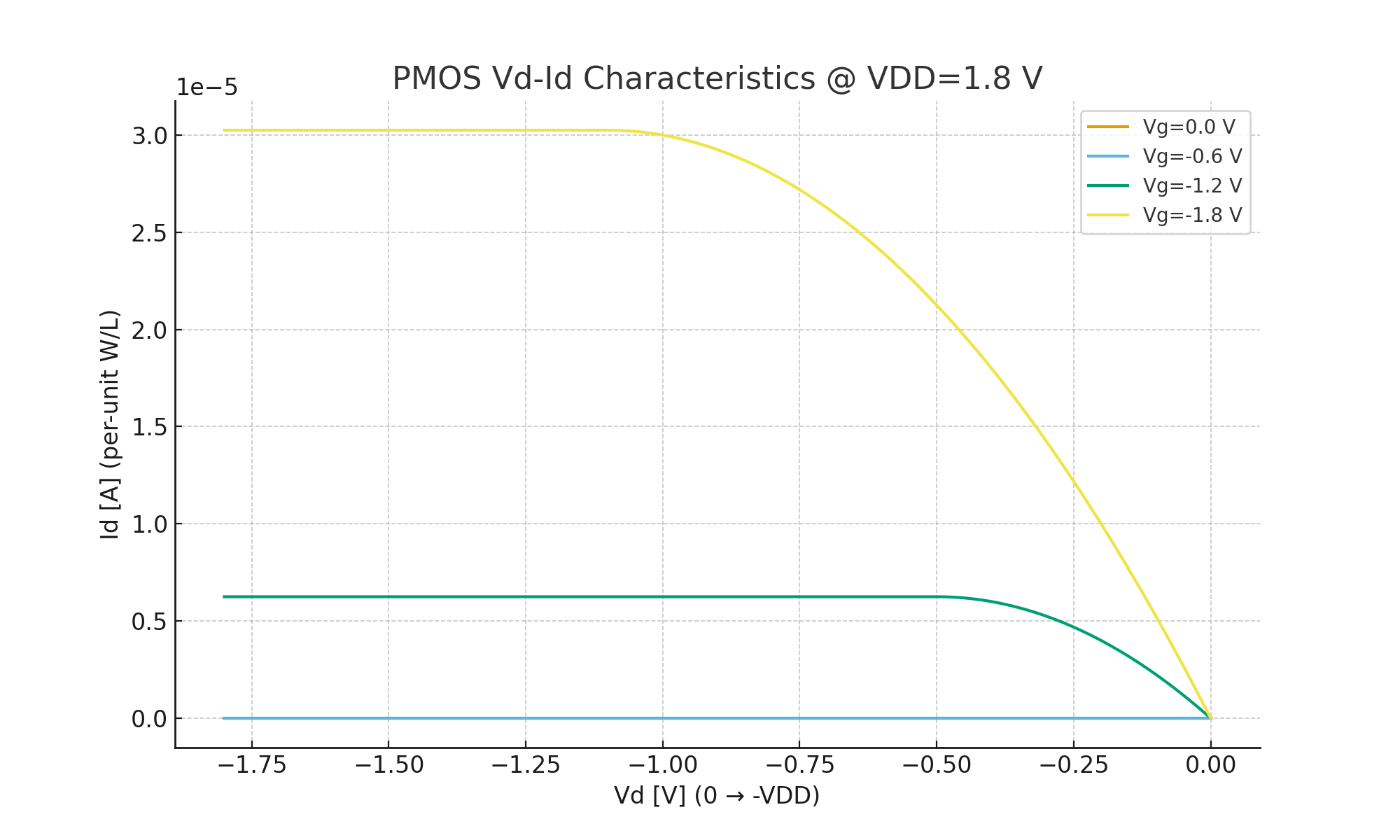

- Vd–Id 特性
PMOS @ 3.3 V

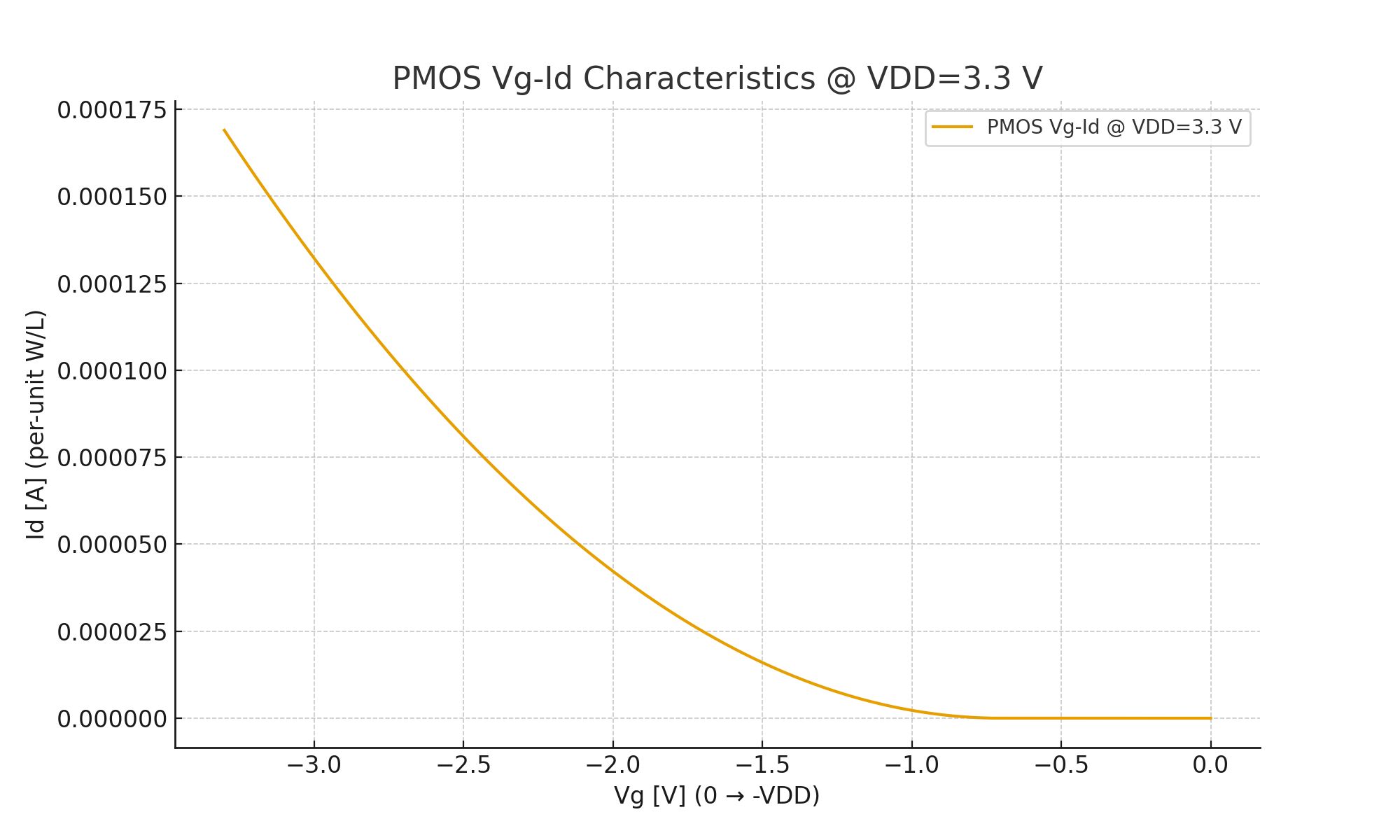

- Vg–Id 特性

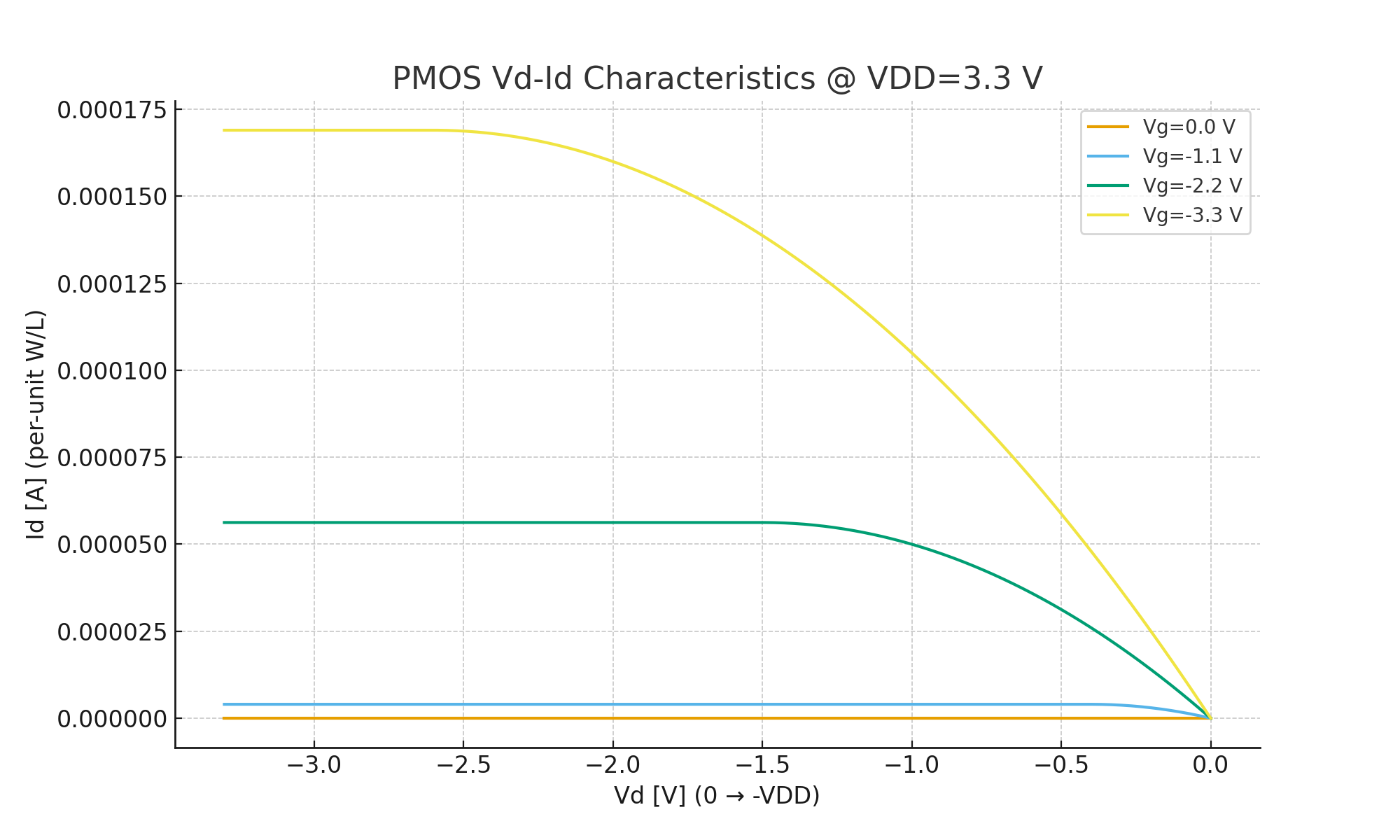

- Vd–Id 特性
🚀 今後の拡張 | Future Extensions
- PMOS 用の追加バリエーション(高電圧対応など)
Add PMOS variations (e.g., high-voltage models) - 短チャネル効果を確認するための W/L バリエーション
W/L variations to observe short-channel effects - CSV 出力と可視化の自動化スクリプト
Automation scripts for CSV export and visualization
